Building area is only 22.20 square meters, and it is a narrow house based on RC (a part steel-frame building) the third floor.

An owner is a couple for 50 generations and daughter. It is the duplex house where the family of three adults lives in.

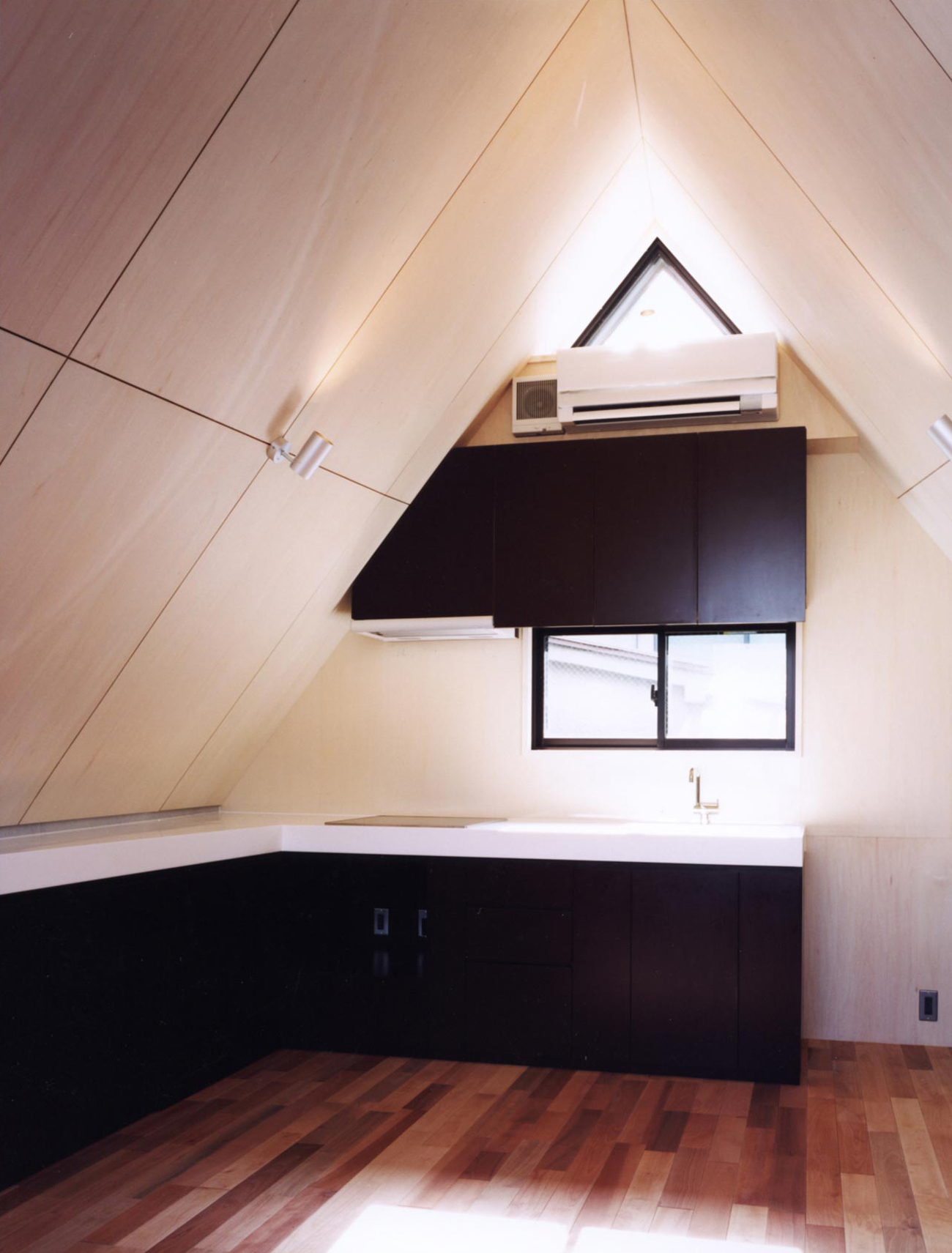

The site shape is the distorted quadrangle which faced two narrow-mindedness roads. Under these conditions, I assumed the first floor a half basement in order to secure the greatest volume and did the top floor with the big living dining of the hut back.

In the area that only 2 stories could build , I was able to secure space for the third floor.

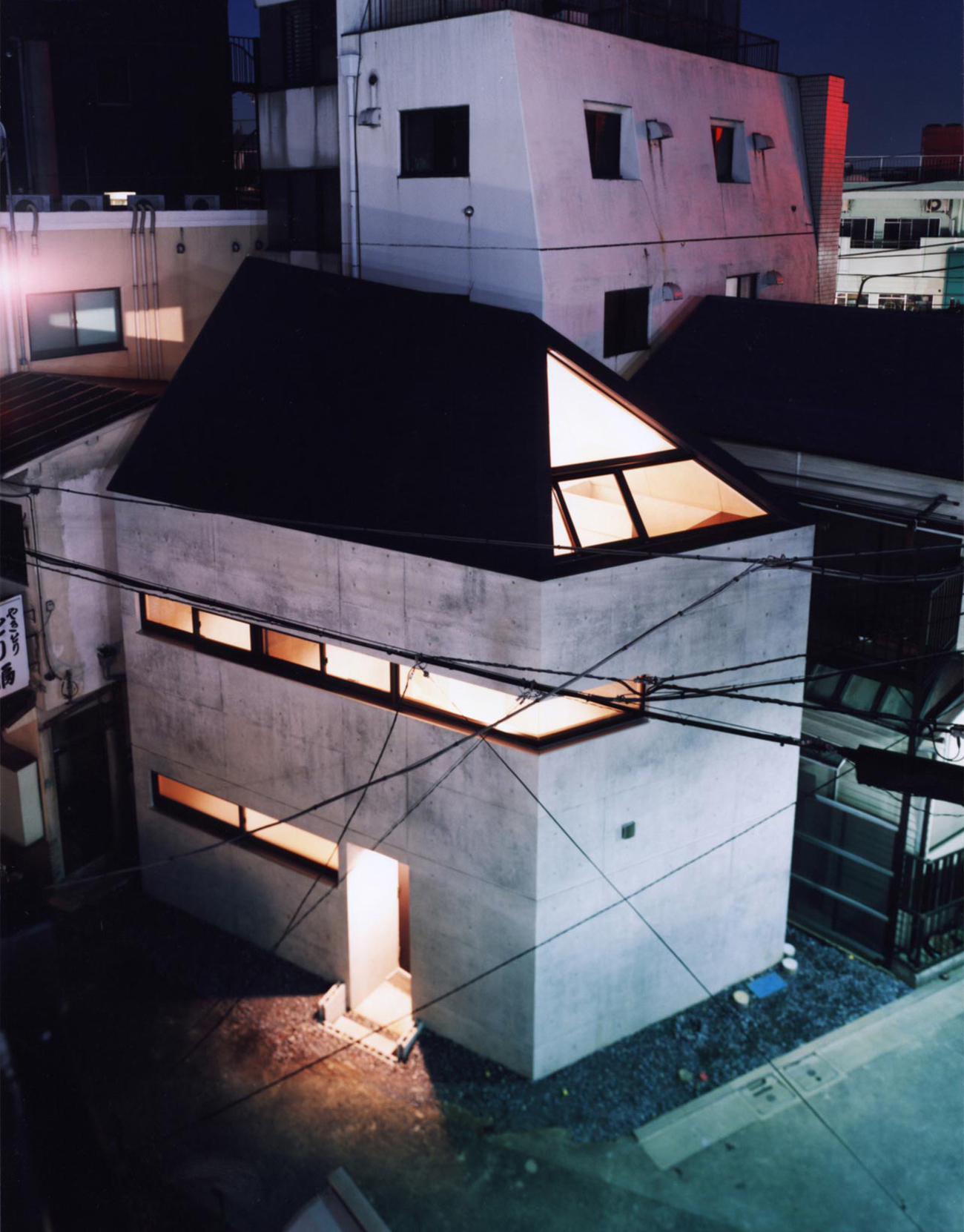

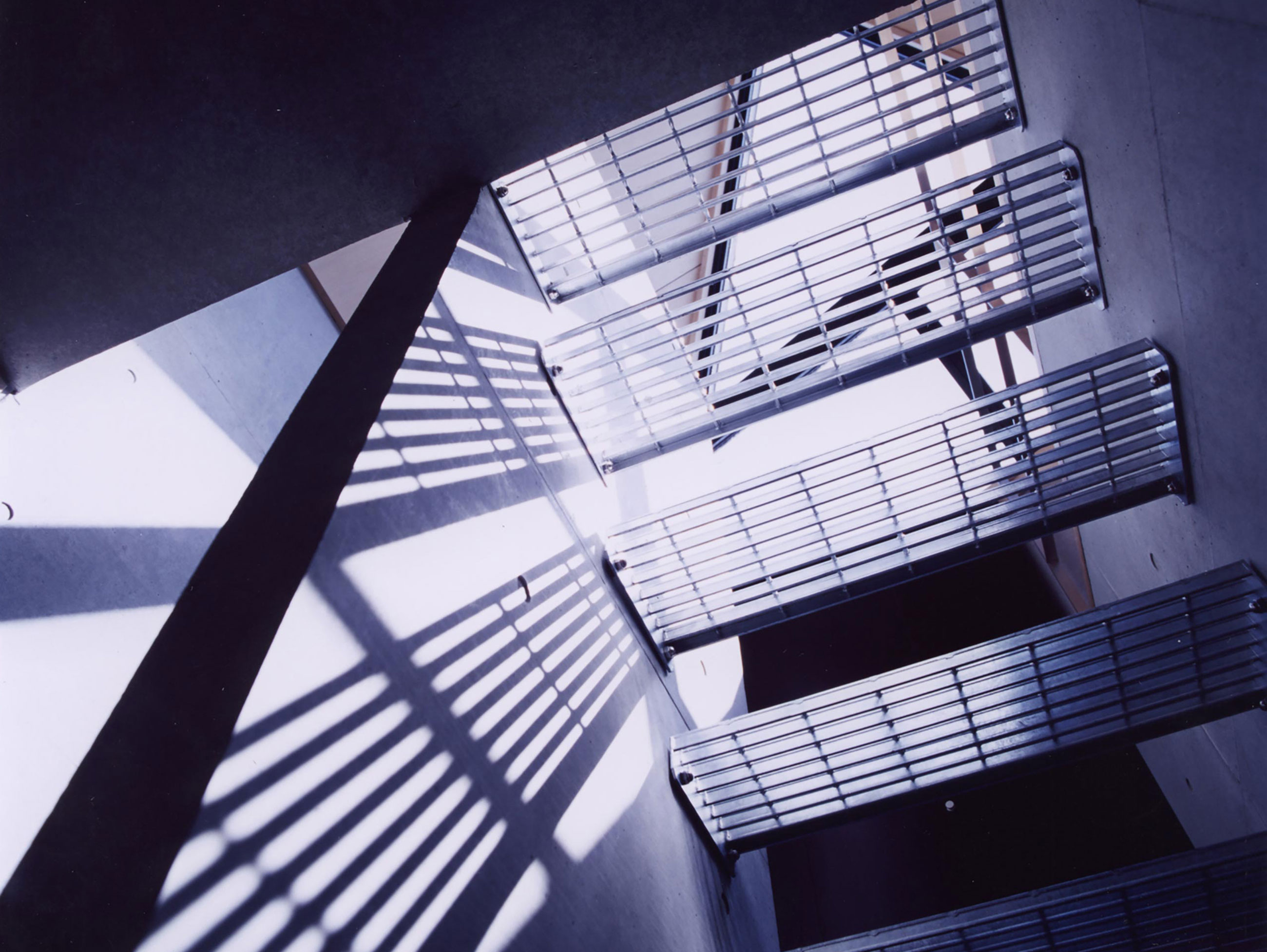

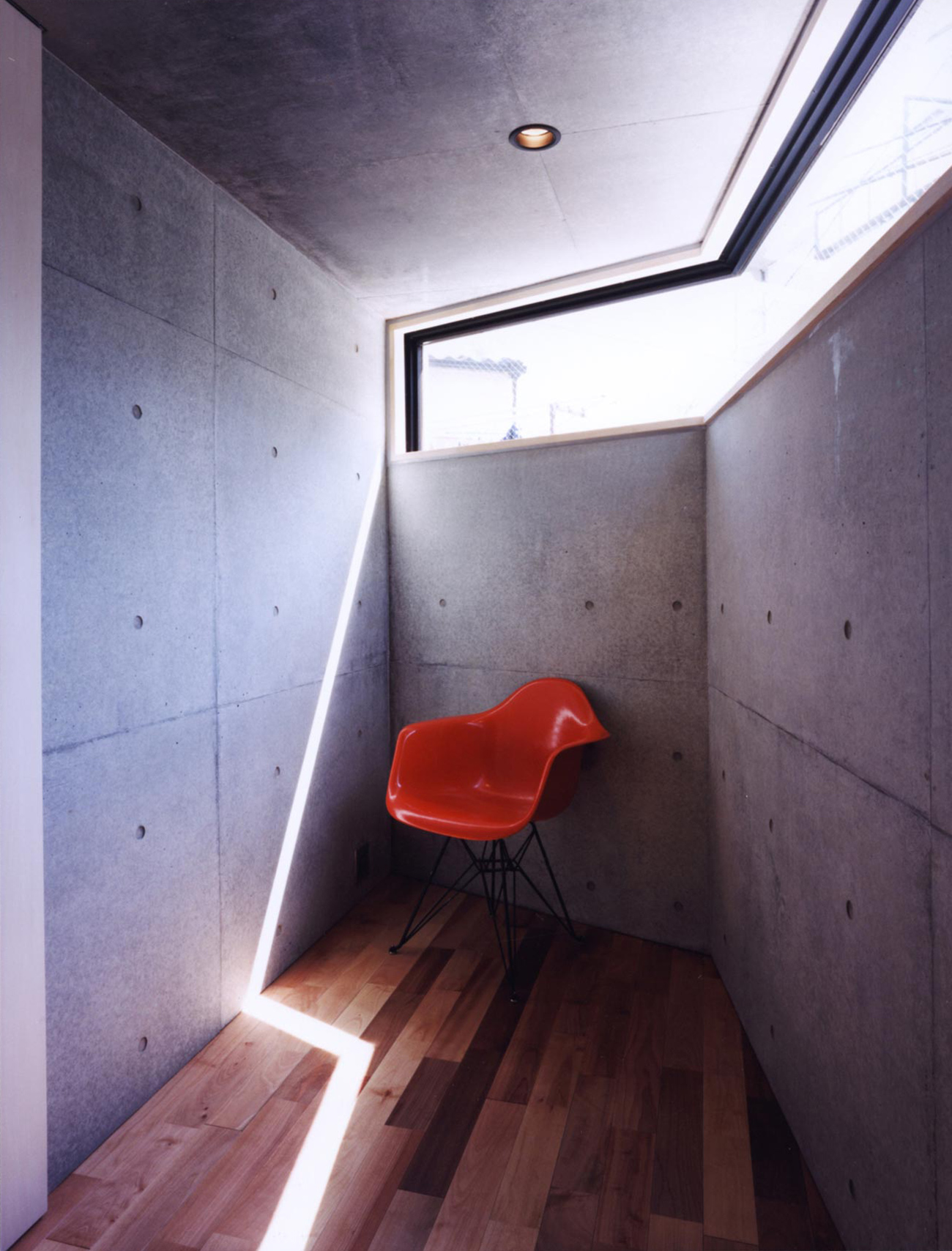

I posted a sharp horizontal window in the first floor and the second floor that arranged a bedroom and cut eyes from neighboring environment. This horizontal window forms the appearance design of the building. In contrast with it, I assumed all the southeast roof sides of the third floor that became the incline roof a top light. Enough light pours to the first floor through grating stairs.

It may be said that Sharp and the simple space are right representatives of “the houses of the stature” in spite of a severe condition called three livings at deferred floor space 66.60 square meters.

SITE RESEARCH COURSE

Agent : TRANSISTOR (Shigetu Kimura)



MEDIA

[home review] (India)

[CASA Living] (Korean)

[Small House Tokyo] (America)

[BUSSINES WEEK]

[Kyoshojutaku5]

[Memo][LIVES]

[designboom]

[designflux] (Korean)

[Small House”ism”]

土地探しコース

仲介:トランジスタ(木村茂)



MEDIA

「home review」(インド)

「CASA Living」(韓国)

「Small House Tokyo」(アメリカ)

「BUSSINES WEEK」

「狭小住宅5」

「Memo 男の部屋」

「LIVES」

「designboom」

「designflux」(韓国)

「狭小住宅イズム」

DATA

  • Location Meguro ward Tokyo
    Completion 2004. 4
    Lot area 40.81㎡
    Site area 22.20㎡
    1F Floor area 22.20㎡
    2F Floor area 22.20㎡
    3F Floor area 22.20㎡
    Total floor area 66.60㎡
    Structure RC (partly Steel)
    Scale 3F
    Typology Private Housing
    Family structure A couple + a child
    Structure engineers Masaki Structural Laboratory
    Kenta Masaki
    Facility engineers Shimada architects
    Zenei Shimada
    Construction Ryozo Kimura construction
    Photographer Yukihisa Matsuda
  • 所在地 東京都目黒区中央町
    竣工 2004年4月
    敷地面積 40.81㎡(12.34坪)
    建築面積 22.20㎡( 6.71坪)
    1F床面積 22.20㎡( 6.71坪)
    2F床面積 22.20㎡( 6.71坪)
    3F床面積 22.20㎡( 6.71坪)
    延床面積 66.60㎡(20.14坪)
    構造 鉄筋コンクリート壁式構造(一部鉄骨造)
    規模 地上3階建
    用途 専用住宅
    家族構成 夫婦+子供1人
    構造設計 正木構造研究所
    正木健太
    設備設計 シマダ設計
    島田善衛
    施工 木村良三工務店
    建築写真 松田幸久
